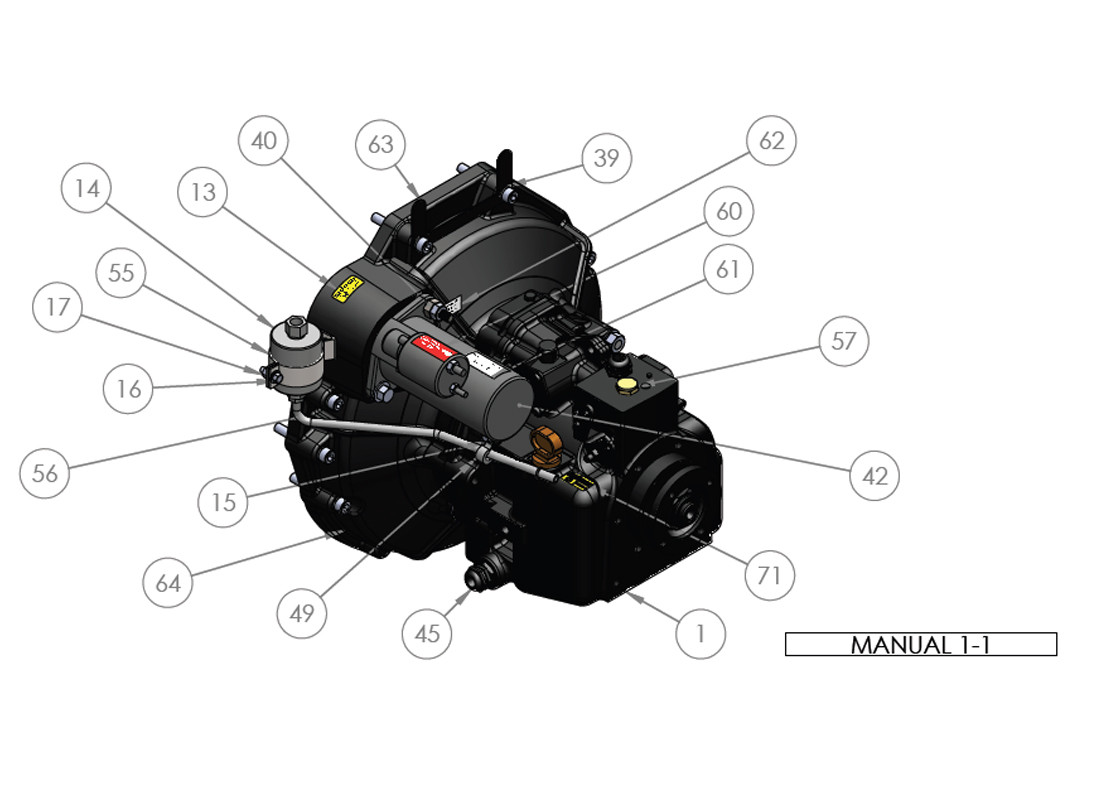

MANUAL 1-1
| Number | Reference | Name | Price | ||
|---|---|---|---|---|---|
| 16 | 1676116Q |
|
SCREW FH 1/4 - 20 X 3/4 SPEC |
A$1.37
|
|
| 14 | 1667114 |
|
Indmar FILTER FUEL EFI (ALL) |
A$155.80
|
|
| 49 | 1764112 |
|
CLAMP ADEL (DIPSTICK/FUEL LINE) |
A$36.48
|
|
| 55 | 1846120 |
|
CLAMP SINGLE PIECE 2" COOLER |
A$36.48
|
|
| 40 | 1677197Q |
|
NUT M10 KEPS SP 25 |
A$3.34
|
|
| 39 | 1677191Q |
|
WASHER LOCK 10 MM SP 25 |
A$0.34
|
|
| 57 | 199620102 |
|
SWITCH TRANS TEMP 240 W/LEAD |
A$312.32
|
|
| 15 | 1676115Q |
|
SCREW FH 1/4-20 x .50 SP 25 |
A$0.91
|
|
| 17 | 1676153Q |
|
NUT LOCK NYLON 1/4-20 SP 25 |
A$0.57
|
|
| 1 | 1193115 |
|
TRANS 1-1 VELVET DRIVE | Check Availability | |
| 13 | 1646041P |
|
BELL HOUSING FORD TOP 1-1 POWDERED |
A$950.00
|
|
| 56 | 1897282 |
|
FUEL FILTER FEED LINE PIT FORD |
A$166.59
|
|
| 61 | 1096345 |
|
DECAL SAE J1171 STICKER | Check Availability | |
| 62 | 1096363 |
|
DECAL MAIN BATTERY GROUND | Check Availability | |
| 63 | 1096041 |
|
BRACKET HARNESS SUPPORT |
A$53.05
|
|
| 64 | 1096051 |
|
BRACKET SPLASH PLATE FORD |
A$58.52
|
|
| 71 | 1003174 |
|
DECAL ATF |
A$4.94
|
|
| 45 | 1712159A |
|
FITTING 1/2 MB x 1/2 JIFFY O-RING SEAL |
A$53.20
|
|
| 60 | 1096185 |
|
DECAL BATTERY POS CABLE |
A$2.28
|
