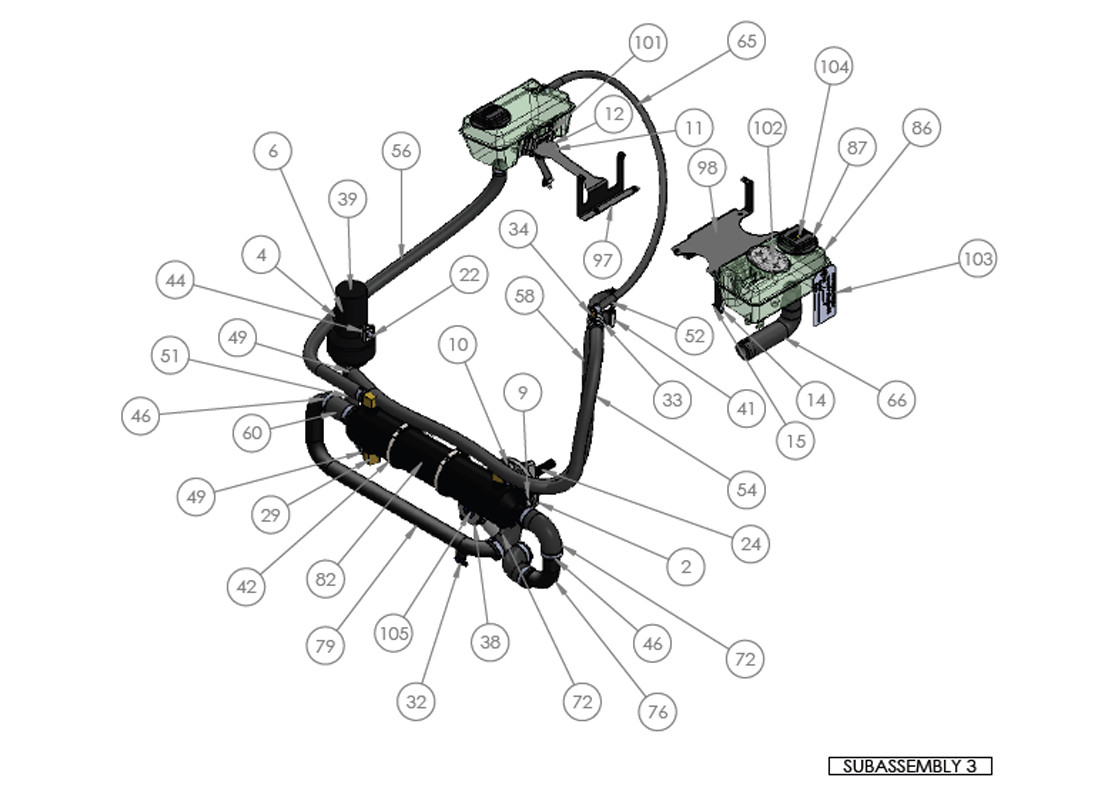

SUBASSEMBLY 3

SUBASSEMBLY 3
Number Reference   Name Price
10 1676306Q Indmar WASHER LOCK 41854(3/8) SP 25 Indmar WASHER LOCK 41854(3/8) SP 25
$7.57
4 1676116Q Indmar SCREW FH  41730(1/4) - 20 x 41732(3/4) SPEC Indmar SCREW FH 41730(1/4) - 20 x 41732(3/4) SPEC
$0.21
60 1956152-030 Indmar Hose 1 1/4 Softwall STK x 3 Inches Indmar Hose 1 1/4 Softwall STK x 3 Inches
$4.57
44 1846120 Indmar CLAMP SINGLE PIECE 2 COOLER Indmar CLAMP SINGLE PIECE 2 COOLER
$12.20
42 1846116 Indmar CLAMP HOSE No_56 (305 350 350-HP 454 454-HP) Indmar CLAMP HOSE No_56 (305 350 350-HP 454 454-HP)
$1.78
24 1608154 Indmar CRANK DAMPNER BOLT FORD 6.2 Indmar CRANK DAMPNER BOLT FORD 6.2
$18.60
9 1676363Q Indmar SCREW SHCS 45507 X 1 SPEC25 Indmar SCREW SHCS 45507 X 1 SPEC25
$1.57
32 1716287 Indmar PLUG WINGED 1/2 ORING Indmar PLUG WINGED 1/2 ORING
$4.00
39 1798113 PUMP ASM FORD INTERCOOLER PUMP ASM FORD INTERCOOLER
$280.00
46 1846149-10 CLAMP HOSE OETIKER 1.25" HOSE (43.5) CLAMP HOSE OETIKER 1.25" HOSE (43.5)
$17.55
101 1097302 MOUNT CLIP TANK HIGH FILL F/W 6.2 MOUNT CLIP TANK HIGH FILL F/W 6.2
$5.00
29 1716149 Indmar FITTING 1/2 NPT x 3/4 HOSE 90 Indmar FITTING 1/2 NPT x 3/4 HOSE 90
$11.80
86 1977213 TANK HIGH FILL F/W 6.OL TANK HIGH FILL F/W 6.OL
$70.00
87 1977214 Indmar CAP TANK HIGH FILL F/W 6.OL/6.2L Indmar CAP TANK HIGH FILL F/W 6.OL/6.2L
$30.00
41 1846115 Indmar CLAMP HOSE  8   C6708 Indmar CLAMP HOSE 8 C6708
$1.45
6 1676153Q NUT LOCK NYLON 1/4-20 SP 25 NUT LOCK NYLON 1/4-20 SP 25
$0.15
22 1677015Q SCREW FH M8-1.25 x 12 SP25 SCREW FH M8-1.25 x 12 SP25 Call for Price
11 1676021Q SCREW PHIL PAN 10-24 x 3/4 SP 25 SCREW PHIL PAN 10-24 x 3/4 SP 25 Call for Price
12 1676031Q NUT HEX 10-24 NYLON LOCK SP25 NUT HEX 10-24 NYLON LOCK SP25 Call for Price
14 1677122Q SCREW FH M6 x 1.00 x 16MM SP 25 SCREW FH M6 x 1.00 x 16MM SP 25
$1.86
15 1677132Q NUT CLIP M6, 1MM PITCH NUT CLIP M6, 1MM PITCH Call for Price
103 1003143 HANG TAG ANTIFREEZE FREEZE PROTECTION HANG TAG ANTIFREEZE FREEZE PROTECTION Call for Price
105 1003176 DECAL DECAL DRAIN 1 THRU 5 DECAL DECAL DRAIN 1 THRU 5
$0.74
49 1846152 CLAMP HOSE OETIKER 3/4 HOSE (28.6) CLAMP HOSE OETIKER 3/4 HOSE (28.6)
$1.12
66 1956158 HOSE 1" X 3/4" HIGH FILL FORMED HOSE 1" X 3/4" HIGH FILL FORMED
$21.28
38 1796112-3 PUMP RAW WATER HI FLOW w/RETAIN RING w/SAEJ1231 HOSE BARB PUMP RAW WATER HI FLOW w/RETAIN RING w/SAEJ1231 HOSE BARB
$304.80
34 1716022 FITTING 1/8 NPT x 5/16 HOSE BRASS 90 DEG FITTING 1/8 NPT x 5/16 HOSE BRASS 90 DEG
$8.20
98 1096075 BRACKET ECM SUPERCHARGED FORD 2017 BRACKET ECM SUPERCHARGED FORD 2017
$82.44
33 1716021 FITTING 3/4" x 3/4" x 1/8 NPT FEMALE FITTING 3/4" x 3/4" x 1/8 NPT FEMALE
$14.00
51 1956127-090 HOSE 3/4" SOFT WALL x 9" HOSE 3/4" SOFT WALL x 9" Call for Price
54 1956127-170 HOSE 3/4" SOFT WALL x 17" HOSE 3/4" SOFT WALL x 17" Call for Price
56 1956127-280 HOSE 3/4" SOFTWALL x 28" HOSE 3/4" SOFTWALL x 28" Call for Price
58 1956127-440 HOSE 3/4" SOFTWALL x 44" HOSE 3/4" SOFTWALL x 44" Call for Price
65 1956156-420 HOSE 5/16" x 42" WATER HOSE FORD HOSE 5/16" x 42" WATER HOSE FORD Call for Price
72 1956013C-575 HOSE FORMED CUT FORD RWP2TUBE 1.25" 2017 HOSE FORMED CUT FORD RWP2TUBE 1.25" 2017 Call for Price
76 1966153E TUBE 1.25", 4" x 4" W/ 90 TUBE 1.25", 4" x 4" W/ 90 Call for Price
102 1003115 DECAL THREE STAR EPA DECAL THREE STAR EPA
$125.00
79 1966042E TUBE 1.25 RWP TO ICC W/ DRAIN (SQR) 2017 TUBE 1.25 RWP TO ICC W/ DRAIN (SQR) 2017 Call for Price
82 1976014 HEAT EXCH INTERCOOLER FORD HEAT EXCH INTERCOOLER FORD
$550.00
97 1096069 BRACKET HIGH FILL FUSE BOX 575 2017 BRACKET HIGH FILL FUSE BOX 575 2017
$56.52
