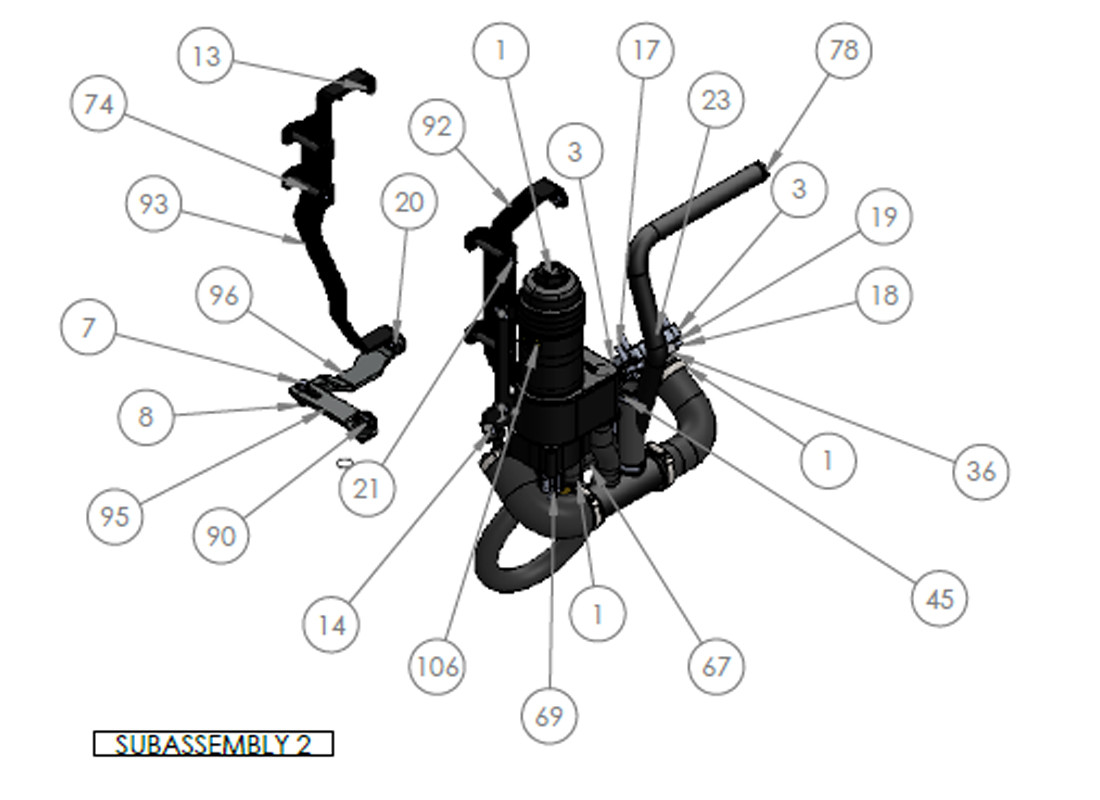

SUBASSEMBLY 2

SUBASSEMBLY 2
Number Reference   Name Price
8 1676246Q Indmar NUT F HEX 5/16-18 SP 25 2 Indmar NUT F HEX 5/16-18 SP 25 2
$0.13
7 1676241Q Indmar SCREW HCS FH 5/16-18 X 1 SP 25 Indmar SCREW HCS FH 5/16-18 X 1 SP 25
$0.38
18 1677163Q Indmar SCREW SHCS 8MM X 1.25 X 40M SP Indmar SCREW SHCS 8MM X 1.25 X 40M SP
$0.61
23 1608153 Indmar SEAL OIL COOLER WATER INLET FORD 6.2 Indmar SEAL OIL COOLER WATER INLET FORD 6.2
$8.40
20 1677197Q Indmar NUT M10 KEPS SP 25 Indmar NUT M10 KEPS SP 25
$0.52
17 1677162Q Indmar SCREW SHC 8MM X 1.25 X 30 SP 25 Indmar SCREW SHC 8MM X 1.25 X 30 SP 25
$0.50
13 1676086Q NUT HEX 8MM w/STAR WASHER NUT HEX 8MM w/STAR WASHER
$1.27
45 1846148 CLAMP HOSE OETIKER 1" HOSE CLAMP HOSE OETIKER 1" HOSE
$1.25
14 1677122Q SCREW FH M6 x 1.00 x 16MM SP 25 SCREW FH M6 x 1.00 x 16MM SP 25
$1.86
36 1716023 FITTING 1 5/8"-12 by 1-1/2" HOSE BARB FITTING 1 5/8"-12 by 1-1/2" HOSE BARB
$12.00
69 1956178-LOCK HOSE SAFETY LOCK HOSE SAFETY LOCK
$2.53
96 1096063 BRACKET RAW WATER "A" 6.2 FORD OFFSET BRACKET RAW WATER "A" 6.2 FORD OFFSET
$25.04
106 1003170 DECAL OIL FILTER INDMAR DECAL OIL FILTER INDMAR
$0.25
3 1646068M WATER DIST HSG 6.2 ORING PORT WATER DIST HSG 6.2 ORING PORT Call for Price
67 1956178-130S HOSE ASM 13" W/SLEEVE LOCKING HOSE ASM 13" W/SLEEVE LOCKING Call for Price
21 1677100Q SCREW SHC M6 x 1.00 x 70 SCREW SHC M6 x 1.00 x 70 Call for Price
92 1096052 BRACKET, HEAT EXCHANGER SIDE FORD BRACKET, HEAT EXCHANGER SIDE FORD
$63.76
93 1096053 BRACKET HEAT EXCHANGER FRONT FORD BRACKET HEAT EXCHANGER FRONT FORD
$61.88
95 1096059 BRACKET, PUMP "B" RWP HALF ANGLED BRACKET, PUMP "B" RWP HALF ANGLED
$23.00
