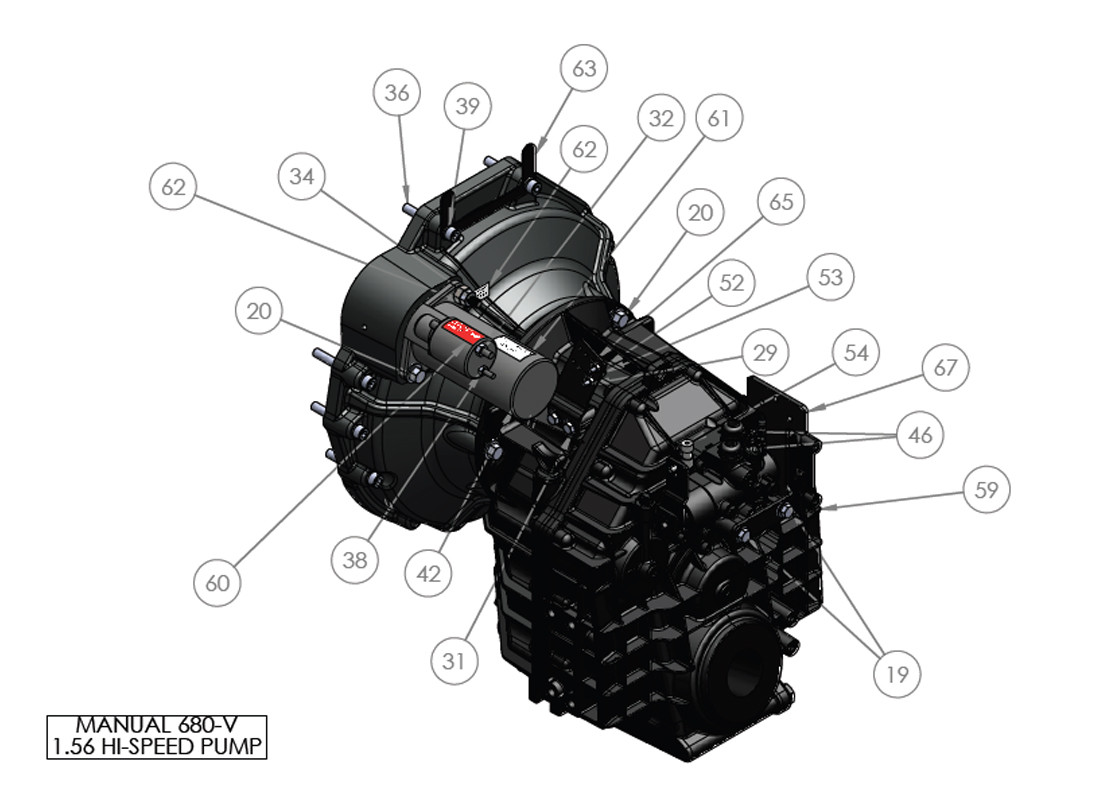

MANUAL 680-V 1.56 HI-SPEED PUMP - TRANS ASSEMBLIES-2 - TRANSMISSION ASSEMBLIES 2019 - MY2019 Specific - Ford

Number	Reference	Name	Price
31	1676070Q	Indmar SCREW FH M8-1.25 X 20 MM SP 25		Check Availability
20	1676411Q	SCREW FH 7/16-14 X 1 SP 25		Check Availability
39	1677191Q	Indmar WASHER LOCK 10 MM SP 25	A$2.19
36	1677147Q	Indmar SCREW SHC M10 X 1.5 X 70 SP 25	A$30.64
54	1706110	Indmar JOINT BALL 311266755 (TRANS 680-V 1.56 HI-SPEED PUMP)		Check Availability
52	1706115	Indmar SHIM (FOR S695005 CLAMP)(HROTTLE 305 350 350-HP 454 454-HP)	Check Availability
53	1706116	Indmar CLAMP CABLE - 30 SERIES (305 350 350-HP 454 454-HP)	Check Availability
32	1676086Q	NUT HEX 8MM w/STAR WASHER	A$18.06
34	1677128	GROUND STUD M10-1.5 6g x 7/16-14 2A	A$150.34
38	1677188Q	NUT HEX 6MM W/WASHER SP25		Check Availability
61	1096345	DECAL SAE J1171 STICKER	A$1.63
62	1096363	DECAL MAIN BATTERY GROUND		Check Availability
63	1096041	BRACKET HARNESS SUPPORT	A$35.26
46	1712159A	FITTING 1/2 MB x 1/2 JIFFY x (3/8 NPT) Anodized	Check Availability
29	1676031Q	NUT HEX 10-24 NYLON LOCK SP25		Check Availability
67	1096097	BRACKET,6.2L FORD FUEL FILTER ASM, MC		Check Availability
65	1096094	BRACKET, 63/68 IV ZF TRANS SHIFT BRACKET, 6.2L FORD		Check Availability
60	1096185	Indmar DECAL BATTERY POS CABLE	Check Availability

31

1676070Q

Indmar SCREW FH M8-1.25 X 20 MM SP 25

Check Availability

20

1676411Q

SCREW FH 7/16-14 X 1 SP 25

Check Availability

39

1677191Q

Indmar WASHER LOCK 10 MM SP 25

A$2.19

36

1677147Q

Indmar SCREW SHC M10 X 1.5 X 70 SP 25

A$30.64

54

1706110

Indmar JOINT BALL 311266755 (TRANS 680-V 1.56 HI-SPEED PUMP)

Check Availability

52

1706115

Indmar SHIM (FOR S695005 CLAMP)(HROTTLE 305 350 350-HP 454 454-HP)

Check Availability

53

1706116

Indmar CLAMP CABLE - 30 SERIES (305 350 350-HP 454 454-HP)

Check Availability

32

1676086Q

NUT HEX 8MM w/STAR WASHER

A$18.06

34

1677128

GROUND STUD M10-1.5 6g x 7/16-14 2A

A$150.34

38

1677188Q

NUT HEX 6MM W/WASHER SP25

Check Availability

61

1096345

DECAL SAE J1171 STICKER

A$1.63

62

1096363

DECAL MAIN BATTERY GROUND

Check Availability

63

1096041

BRACKET HARNESS SUPPORT

A$35.26

46

1712159A

FITTING 1/2 MB x 1/2 JIFFY x (3/8 NPT) Anodized

Check Availability

29

1676031Q

NUT HEX 10-24 NYLON LOCK SP25

Check Availability

67

1096097

BRACKET,6.2L FORD FUEL FILTER ASM, MC

Check Availability

65

1096094

BRACKET, 63/68 IV ZF TRANS SHIFT BRACKET, 6.2L FORD

Check Availability

60

1096185

Indmar DECAL BATTERY POS CABLE

Check Availability
