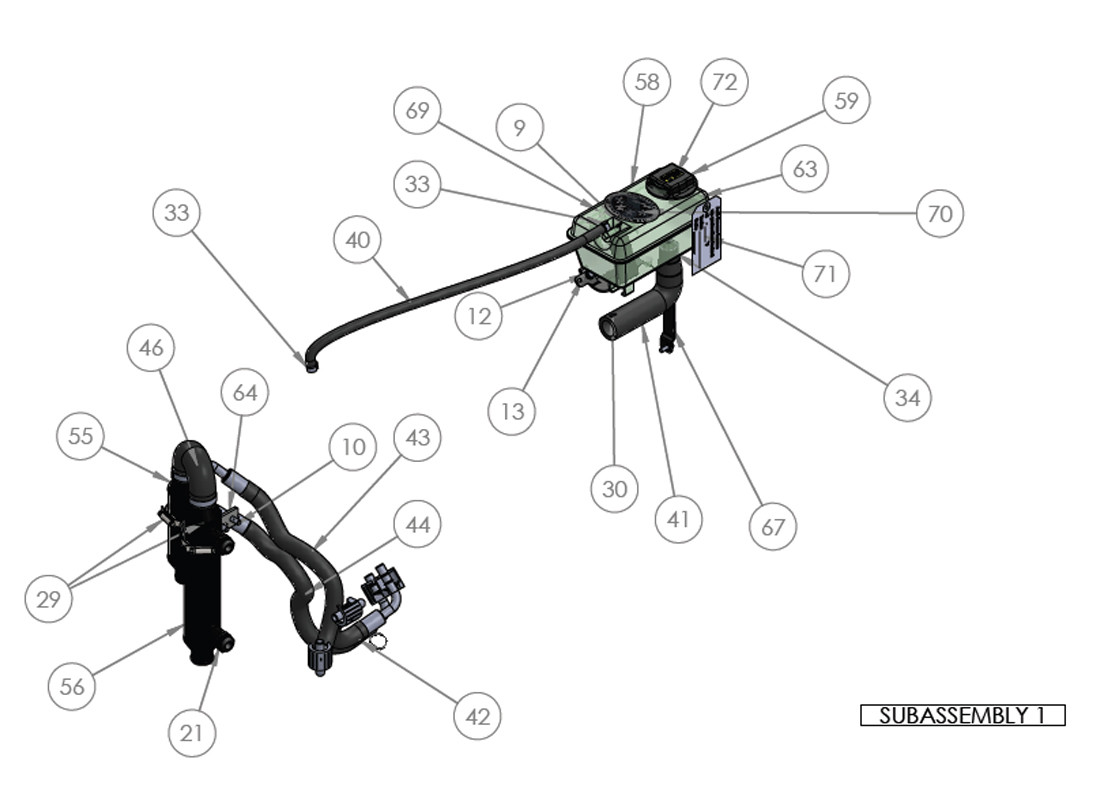

SUBASSEMBLY 1

SUBASSEMBLY 1
Number Reference   Name Price
29 1846121 Indmar CLAMP HOSE No_32 Indmar CLAMP HOSE No_32
$3.62
46 1956014 Indmar HOSE FORMED (1.25") FORD UPPER (OIL2TRANS) COOLER Indmar HOSE FORMED (1.25") FORD UPPER (OIL2TRANS) COOLER
$23.81
56 1976115 Indmar COOLER 9Inch STD w/ORING THREAD Indmar COOLER 9Inch STD w/ORING THREAD
$209.16
55 1976114 Indmar COOLER 5Inch STD w/ORING THREAD Indmar COOLER 5Inch STD w/ORING THREAD
$134.59
64 1096020 Indmar BRACKET (COOLERS) RAW WATER A 6.2 FORD Indmar BRACKET (COOLERS) RAW WATER A 6.2 FORD Call for Price
69 1097302 MOUNT CLIP TANK HIGH FILL F/W 6.2 MOUNT CLIP TANK HIGH FILL F/W 6.2
$5.00
58 1977213 TANK HIGH FILL F/W 6.OL TANK HIGH FILL F/W 6.OL
$70.00
59 1977214 Indmar CAP TANK HIGH FILL F/W 6.OL/6.2L Indmar CAP TANK HIGH FILL F/W 6.OL/6.2L
$130.25
30 1846148 CLAMP HOSE OETIKER 1" HOSE CLAMP HOSE OETIKER 1" HOSE
$5.36
21 1712159A FITTING 1/2 MB x 1/2 JIFFY x (3/8 NPT) Anodized FITTING 1/2 MB x 1/2 JIFFY x (3/8 NPT) Anodized
$18.90
9 1676031Q NUT HEX 10-24 NYLON LOCK SP25 NUT HEX 10-24 NYLON LOCK SP25 Call for Price
12 1677122Q SCREW FH M6 x 1.00 x 16MM SP 25 SCREW FH M6 x 1.00 x 16MM SP 25
$1.86
13 1677132Q NUT CLIP M6, 1MM PITCH NUT CLIP M6, 1MM PITCH Call for Price
33 1846151 CLAMP HOSE OETIKER 5/16 HOSE (15.7) CLAMP HOSE OETIKER 5/16 HOSE (15.7)
$1.34
42 1956178-251S HOSE ASM, 14" W/SLEEVE LOCKING HOSE ASM, 14" W/SLEEVE LOCKING
$53.87
44 1956178-220S HOSE ASM 22" LOCKING SLEEVED HOSE ASM 22" LOCKING SLEEVED
$148.30
40 1956156-240 HOSE 5/16" x 24" WATER HOSE FORD HOSE 5/16" x 24" WATER HOSE FORD Call for Price
63 1096521 DECAL ANTIFREEZE FILL DECAL ANTIFREEZE FILL
$0.82
71 1003143 HANG TAG ANTIFREEZE FREEZE PROTECTION HANG TAG ANTIFREEZE FREEZE PROTECTION Call for Price
72 1003175 DECAL ANTIFREEZE INDMAR DECAL ANTIFREEZE INDMAR
$0.43
34 1846152 CLAMP HOSE OETIKER 3/4 HOSE (28.6) CLAMP HOSE OETIKER 3/4 HOSE (28.6)
$1.12
41 1956158 HOSE 1" X 3/4" HIGH FILL FORMED HOSE 1" X 3/4" HIGH FILL FORMED
$21.28
67 1096081 BRACKET, HIGH FILL BOTTLE FORD 400/440 2017 BRACKET, HIGH FILL BOTTLE FORD 400/440 2017
$27.16
43 1956178-180S HOSE ASM, 18" W/SLEEVE LOCKING 90DEG HOSE ASM, 18" W/SLEEVE LOCKING 90DEG
$142.76
