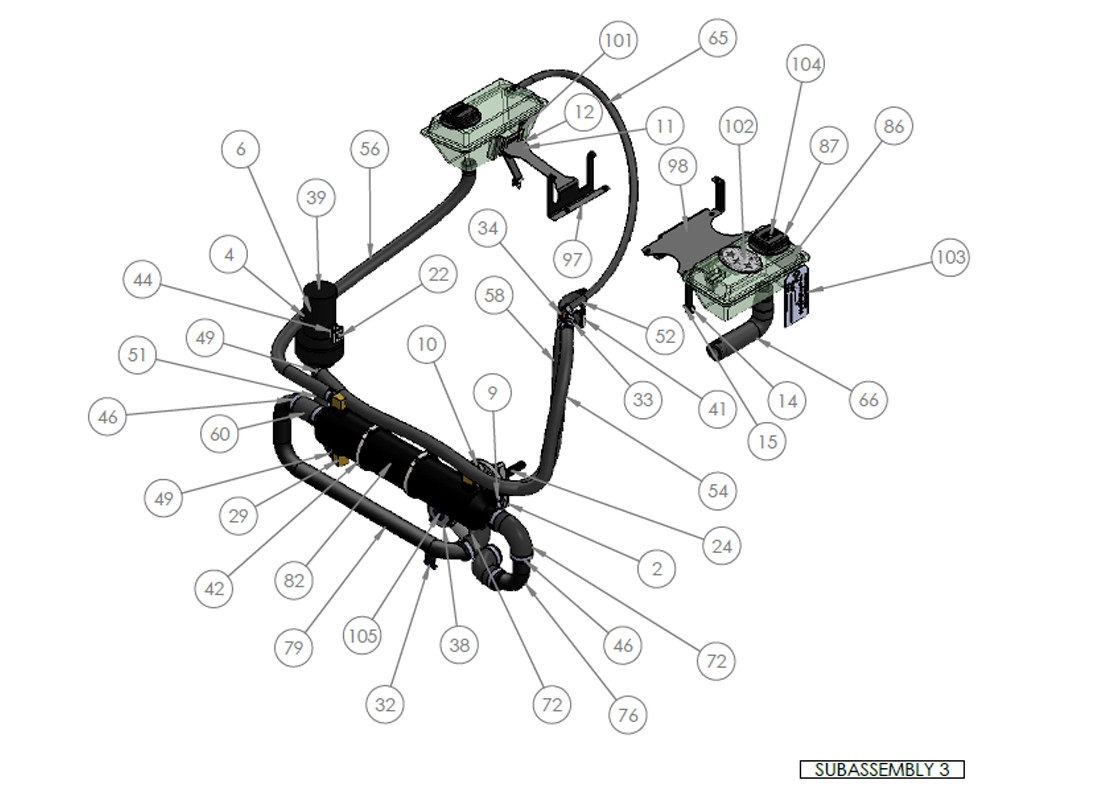

        SUBASSEMBLY 3

        SUBASSEMBLY 3
        Number Reference   Name Price
        10 1676306Q 565295q_20180423_202914.jpg WASHER LOCK 3/8 SP 25
        4 1676116Q 565005q_20180423_201747.jpg SCREW FH 1/4 - 20 X 3/4 SPEC
        60 1956152-030 845041-030_1.jpg HOSE 1 1/4" SOFTWALL STK x 3"
        44 1846120 735019_20180416_185317_1.jpg CLAMP SINGLE PIECE 2" COOLER
        42 1846116 735005.jpg CLAMP HOSE #56
        2 1646025 535914_20180407_155157.jpg DRIVER RAW WATER PUMP FORD 6.2 MS
        A$356.90
        24 1608154 597043_20180409_105432.jpg CRANK DAMPER BOLT FORD 6.2
        A$70.68
        9 1676363Q 565252q_20180424_101742.jpg SCREW SHCS 3/8-24 X 1 SPEC25
        32 1716287 605176_2.jpg PLUG WINGED 1/2" ORING
        39 1798113 687002_20180412_124533.jpg PUMP ASM FORD INTERCOOLER
        A$110.05
        46 1846149-10 735038-10_20180418_165927.jpg CLAMP HOSE OETIKER 1.25" HOSE (43.5)
        101 1097302 986291_2.jpg MOUNT CLIP TANK HIGH FILL F/W 6.2
        29 1716149 605038_20180402_143815.jpg FITTING 1/2 NPT x 3/4 HOSE 90
        A$60.04
        86 1977213 866102_20180420_201140.jpg TANK HIGH FILL F/W AND INTERCOOLER
        A$296.40
        87 1977214 866103_2.jpg CAP TANK HIGH FILL F/W 6.OL/6.2L
        A$114.00
        41 1846115 735004_20180413_160516_1.jpg CLAMP HOSE # 8 C6708
        6 1676153Q 565042q_20180423_200903.jpg NUT LOCK NYLON 1/4-20 SP 25
        22 1677015Q 566904q_20180412_172043.jpg M8-1.25 x 12 HX FLG BLT
        11 1676021Q 565910q_20180423_172531.jpg SCREW PHIL PAN10-24 X 3/4 SP25
        12 1676031Q 565920q_20180423_172420.jpg NUT HEX 10-24 NYLON LOCK sp25
        14 1677122Q 566011q_20180423_184230.jpg SCREW FH M6 X1.0 X 16MM SP 25
        15 1677132Q NUT CLIP M6, 1MM PITCH NUT CLIP M6, 1MM PITCH Check Availability
        103 1003143 HANG TAG ANTIFREEZE FREEZE PROTECTION HANG TAG ANTIFREEZE FREEZE PROTECTION
        104 1003175 DECAL ANTIFREEZE INDMAR DECAL ANTIFREEZE INDMAR
        105 1003176 DECAL DECAL DRAIN 1 THRU 5 DECAL DECAL DRAIN 1 THRU 5
        49 1846152 735041-10 CLAMP HOSE OETIKER 3/4 HOSE (28.6) 735041-10 CLAMP HOSE OETIKER 3/4 HOSE (28.6)
        66 1956158 845047_20180412_162127.jpg HOSE 1" X 3/4" HIGH FILL FORMED
        A$128.44

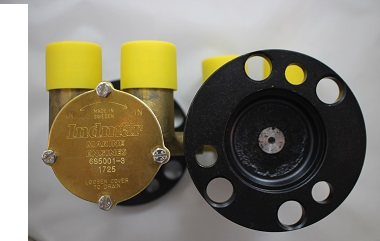

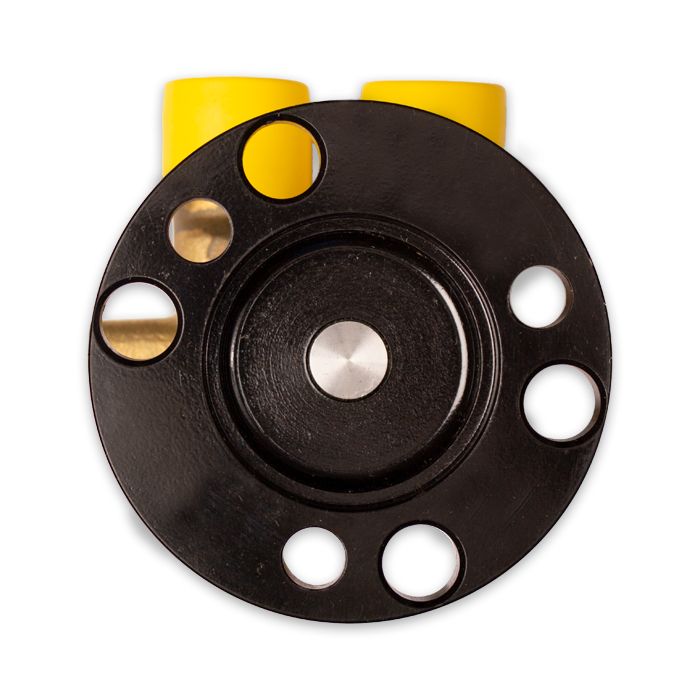

        38 1796112-3 685001-4_1.jpg PUMP RAW WATER FULL BARB USE 685001-5
        A$1,276.80
        34 1716022 605911_20180419_153327.jpg FITTING 1/8NPT x 5/16 BRASS 90
        98 1096075 985964_3.jpg BRACKET ECM SUPERCHARGED FORD 2017
        A$468.16
        33 1716021 605910.jpg FITTING 3/4 TEE x 1/8 NPT
        A$83.60
        51 1956127-090 HOSE 3/4" SOFT WALL x 9" HOSE 3/4" SOFT WALL x 9" Check Availability
        54 1956127-170 HOSE 3/4" SOFT WALL x 17" HOSE 3/4" SOFT WALL x 17" Check Availability
        56 1956127-280 HOSE 3/4" SOFTWALL x 28" HOSE 3/4" SOFTWALL x 28" Check Availability
        58 1956127-440 HOSE 3/4" SOFTWALL x 44" HOSE 3/4" SOFTWALL x 44" Check Availability
        65 1956156-420 845045-420_20180410_190444.jpg HOSE 5/16" x 42"WATER HOSE FORD
        72 1956013C-575 845902c-575_20180412_153658.jpg HOSE FORMED CUT FORD RWP2TUBE 1.25" 2017
        76 1966153E 855042e_20180412_200452.jpg TUBE 1-1/4" JOHNSON PUMP TO PICKUP
        A$60.80
        102 1003115 DECAL THREE STAR EPA DECAL THREE STAR EPA Check Availability
        79 1966042E placeholder_4.jpg TUBE 1.25 RWP TO ICC W/ DRAIN (SQR) 2017
        A$188.33
        82 1976014 865903_20180409_220337.jpg HEAT EXCH INTERCOOLER FORD
        A$2,333.20
        97 1096069 BRACKET HIGH FILL FUSE BOX 575 2017 BRACKET HIGH FILL FUSE BOX 575 2017 Check Availability
