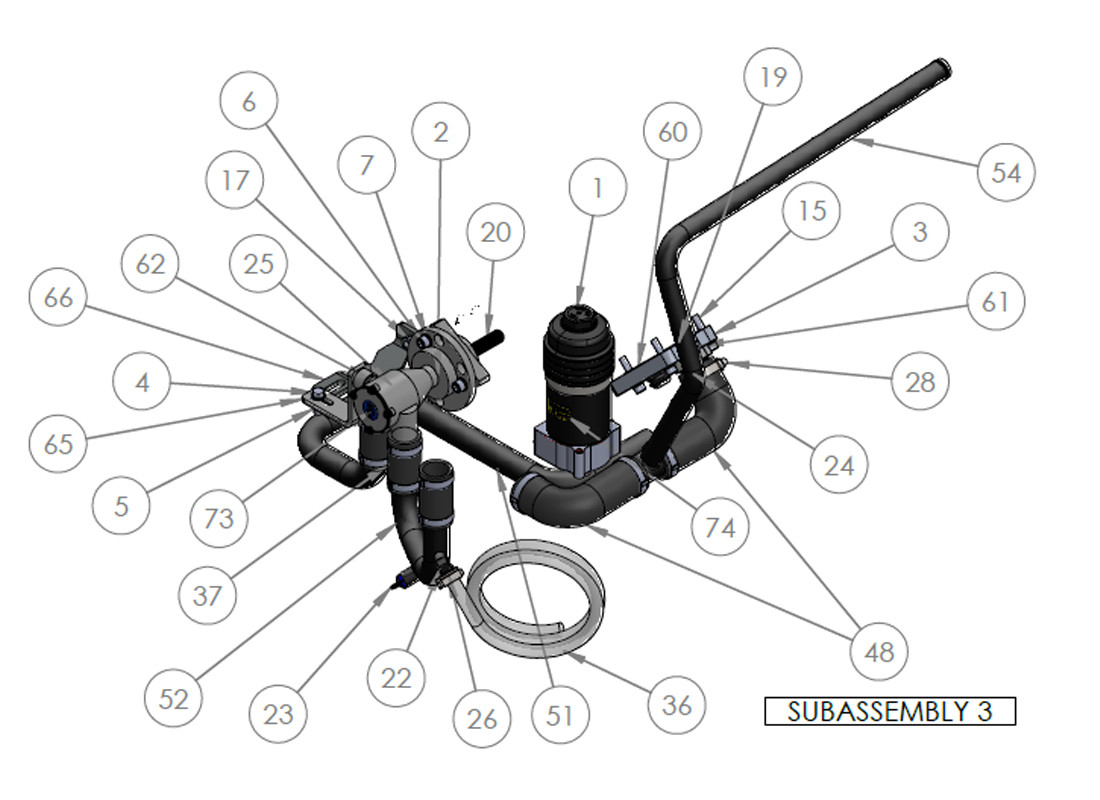

SUBASSEMBLY 3
| Number | Reference | Name | Price | ||
|---|---|---|---|---|---|
| 7 | 1676306Q |
|
WASHER LOCK 3/8 SP 25 |
A$0.27
|
|
| 5 | 1676246Q |
|
NUT F HEX 5/16-18 SP 25 |
A$0.46
|
|
| 4 | 1676241Q |
|
SCREW HCS FH 5/16-18 X 1 SP 25 |
A$1.33
|
|
| 2 | 1646025 |
|
DRIVER RAW WATER PUMP FORD 6.2 MS |
A$356.90
|
|
| 15 | 1677163Q |
|
SCREW SHCS 8MM X 1.25 X 40M SP |
A$2.13
|
|
| 19 | 1608153 |
|
SEAL OIL COOLER WATER INLET FORD 6.2 |
A$31.92
|
|
| 20 | 1608154 |
|
CRANK DAMPER BOLT FORD 6.2 |
A$70.68
|
|
| 17 | 1677197Q |
|
NUT M10 KEPS SP 25 |
A$3.34
|
|
| 6 | 1676363Q |
|
SCREW SHCS 3/8-24 X 1 SPEC25 |
A$5.51
|
|
| 28 | 1846119 |
|
CLAMP HOSE #24 |
A$5.47
|
|
| 23 | 1716287 |
|
PLUG WINGED 1/2" ORING |
A$15.20
|
|
| 22 | 1716220 |
|
FITTING 1/8 NPT X 3/8 BARB NYL ELBOW |
A$10.49
|
|
| 26 | 1846112 |
|
CLAMP HOSE # 4 MICRO MINI |
A$7.30
|
|
| 24 | 1716023 |
|
FITTING 1-5/8x1-1/2 HOSE WATER DIST |
A$84.82
|
|
| 3 | 1646068M |
|
WATER DIST HSG 6.2 ORING PORT MS |
A$389.27
|
|
| 25 | 1796112-3 |
|
PUMP RAW WATER FULL BARB USE 685001-5 |
A$1,276.80
|
