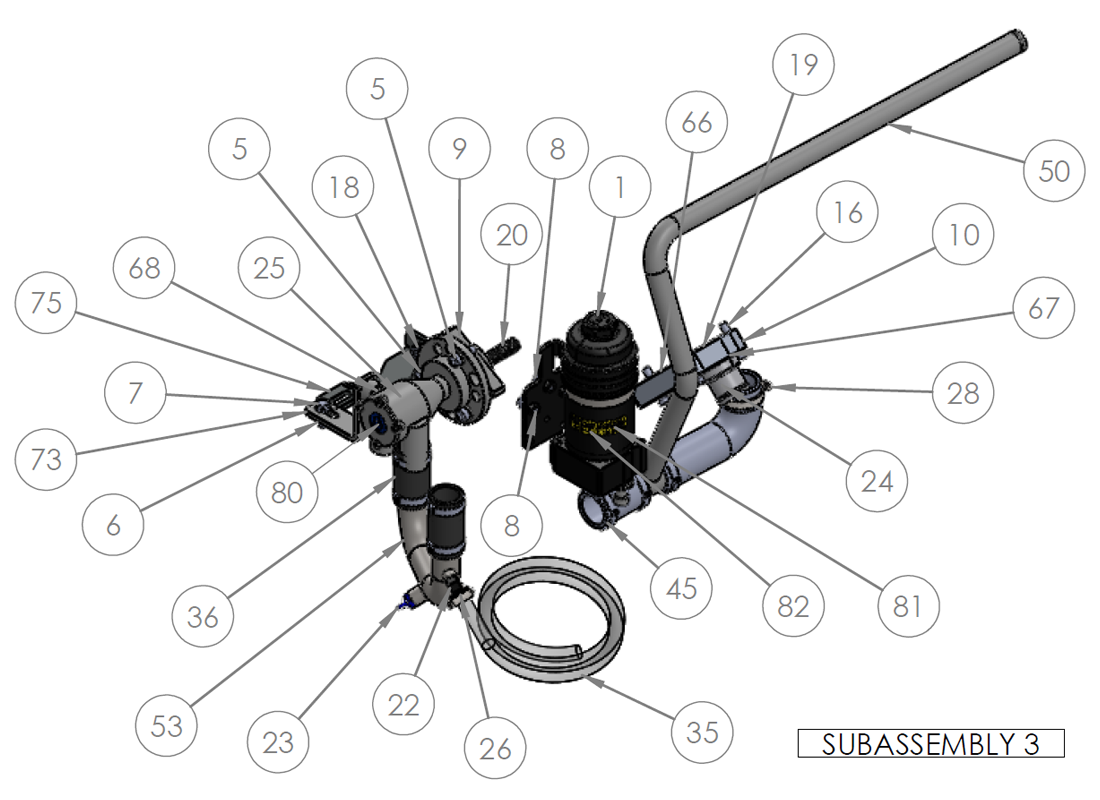

SUBASSEMBLY 3

SUBASSEMBLY 3
Number Reference   Name Price
6 1676246Q Indmar NUT F HEX 5/16-18 SP 25 2 Indmar NUT F HEX 5/16-18 SP 25 2
$0.13
7 1676241Q Indmar SCREW HCS FH 5/16-18 X 1 SP 25 Indmar SCREW HCS FH 5/16-18 X 1 SP 25
$0.38
8 1676116Q Indmar SCREW FH  41730(1/4) - 20 x 41732(3/4) SPEC Indmar SCREW FH 41730(1/4) - 20 x 41732(3/4) SPEC
$0.21
68 1096164 Indmar BUSHING RAW WATER BRACKET (RUBBER 305 350 350-HP 454 454-HP) Indmar BUSHING RAW WATER BRACKET (RUBBER 305 350 350-HP 454 454-HP)
$1.00
36 1956152-030 Indmar Hose 1 1/4 Softwall STK x 3 Inches Indmar Hose 1 1/4 Softwall STK x 3 Inches
$4.57
9 1646025 DRIVER RAW WATER PUMP FORD 6.2 MS DRIVER RAW WATER PUMP FORD 6.2 MS
$93.92
16 1677163Q Indmar SCREW SHCS 8MM X 1.25 X 40M SP Indmar SCREW SHCS 8MM X 1.25 X 40M SP
$0.61
19 1608153 Indmar SEAL OIL COOLER WATER INLET FORD 6.2 Indmar SEAL OIL COOLER WATER INLET FORD 6.2
$8.40
20 1608154 Indmar CRANK DAMPNER BOLT FORD 6.2 Indmar CRANK DAMPNER BOLT FORD 6.2
$18.60
18 1677197Q Indmar NUT M10 KEPS SP 25 Indmar NUT M10 KEPS SP 25
$0.52
5 1676363Q Indmar SCREW SHCS 45507 X 1 SPEC25 Indmar SCREW SHCS 45507 X 1 SPEC25
$1.57
45 1956012 Indmar HOSE FORMED (1.5" HEX2BLOCK)FORD HEAT/EX TO ENG BLOCK Indmar HOSE FORMED (1.5" HEX2BLOCK)FORD HEAT/EX TO ENG BLOCK
$19.68
28 1846119 Indmar CLAMP HOSE No_24 Indmar CLAMP HOSE No_24
$1.44
50 1966018E Indmar TUBE HEATEXC TO THERMOSTAT 6.2L ECOAT (1-1/2" TEE TO FILL BOTTLE 6.2L FORD) Indmar TUBE HEATEXC TO THERMOSTAT 6.2L ECOAT (1-1/2" TEE TO FILL BOTTLE 6.2L FORD)
$48.52
23 1716287 Indmar PLUG WINGED 1/2 ORING Indmar PLUG WINGED 1/2 ORING
$4.00
25 1796112-2 Indmar PUMP RAW WATER HI FLOW(w/RETAIN RING) Indmar PUMP RAW WATER HI FLOW(w/RETAIN RING)
$304.80
73 1096031 BRACKET PUMP "B" PUMP HALF 6.2 BRACKET PUMP "B" PUMP HALF 6.2
$18.52
22 1716220 FITTING 1/8 NPT X 3/8 BARB NYL ELBOW FITTING 1/8 NPT X 3/8 BARB NYL ELBOW
$2.76
26 1846112 Indmar CLAMP HOSE  4   MICRO MINI Indmar CLAMP HOSE 4 MICRO MINI
$1.32
10 1646018M WATER/OIL DISTRIBUTION PLATE 6.2 FORD WATER/OIL DISTRIBUTION PLATE 6.2 FORD Call for Price
24 1716023 FITTING 1 5/8"-12 by 1-1/2" HOSE BARB FITTING 1 5/8"-12 by 1-1/2" HOSE BARB
$12.00
35 1956131-600 HOSE 3/8 CLEAR NYLON REINF. 60" long HOSE 3/8 CLEAR NYLON REINF. 60" long Call for Price
53 1966023 TUBE, RWP TO TRANSCOOLER DRAIN/SHAFT WATER TUBE, RWP TO TRANSCOOLER DRAIN/SHAFT WATER
$58.24
66 1996205 O-RING OIL FORD WATER DIST HOUSING O-RING OIL FORD WATER DIST HOUSING
$0.70
67 1996017 O-RING, WATER/OIL DIS SEAL OR-221 1.421 O-RING, WATER/OIL DIS SEAL OR-221 1.421
$0.63
75 1096063 BRACKET RAW WATER "A" 6.2 FORD OFFSET BRACKET RAW WATER "A" 6.2 FORD OFFSET
$25.04
82 1003170 DECAL OIL FILTER INDMAR DECAL OIL FILTER INDMAR
$0.25
80 1003176 DECAL DECAL DRAIN 1 THRU 5 DECAL DECAL DRAIN 1 THRU 5
$0.74
81 1003178 DECAL 5W30 INDMAR DECAL 5W30 INDMAR
$0.28
